Dancore supplies high-precision stainless steel woven wire mesh, heavy-duty quarry screens, micron filtration media, and architectural decorative screens. Backed by 25+ years of Australian industry expertise, we fabricate to your exact specifications with rapid dispatch nationwide.
Direct Technical Line: 03 9998 0447Manufactured from premium Grade 304, 316 and high-tensile spring steel with tight aperture tolerances.
Custom roll slitting, hook strip attachments, circular screen re-meshing, and welded basket strainers.
Our team works directly with engineers and plant operators to calculate open area %, flow rates, and micron cut-offs.
Stocked rolls and fast turnarounds delivered directly to job sites, quarries, factories, and architectural projects.
Seven specialist categories, from 25-micron filtration cloth to heavy-duty quarry screens. Each comes with downloadable technical specifications.

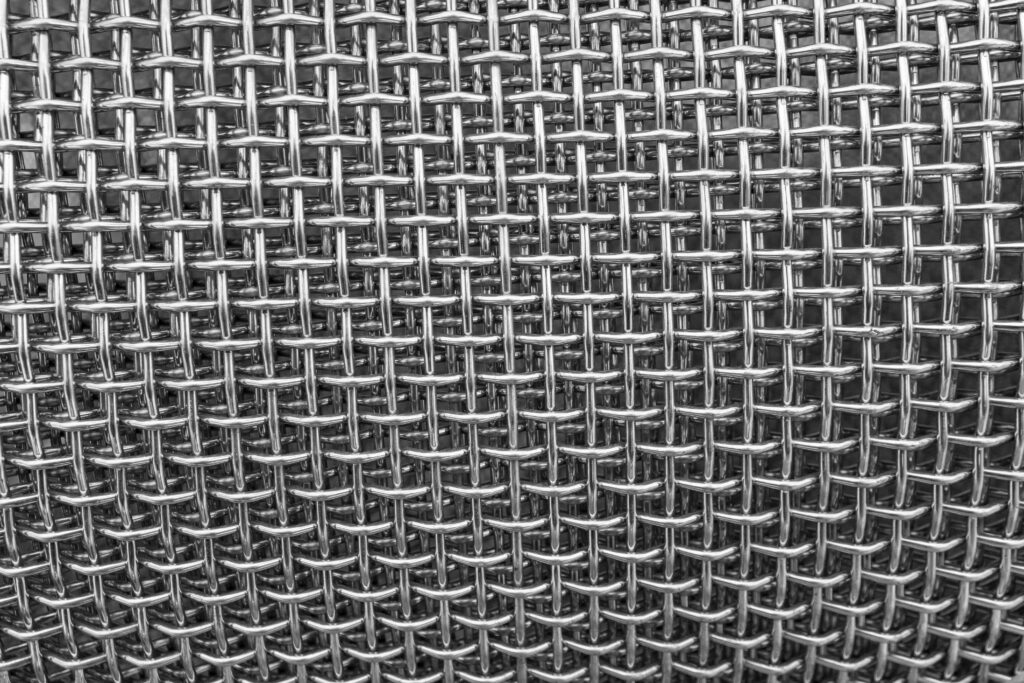

Versatile, durable, and highly corrosion-resistant. Ideal for industrial sieving, food & chemical processing, architectural infill panels, and fine sifting.
Specifications: Apertures from 0.025 mm (25 microns) to 25.0 mm | Standard roll widths: 1000 mm, 1220 mm, 1530 mm.

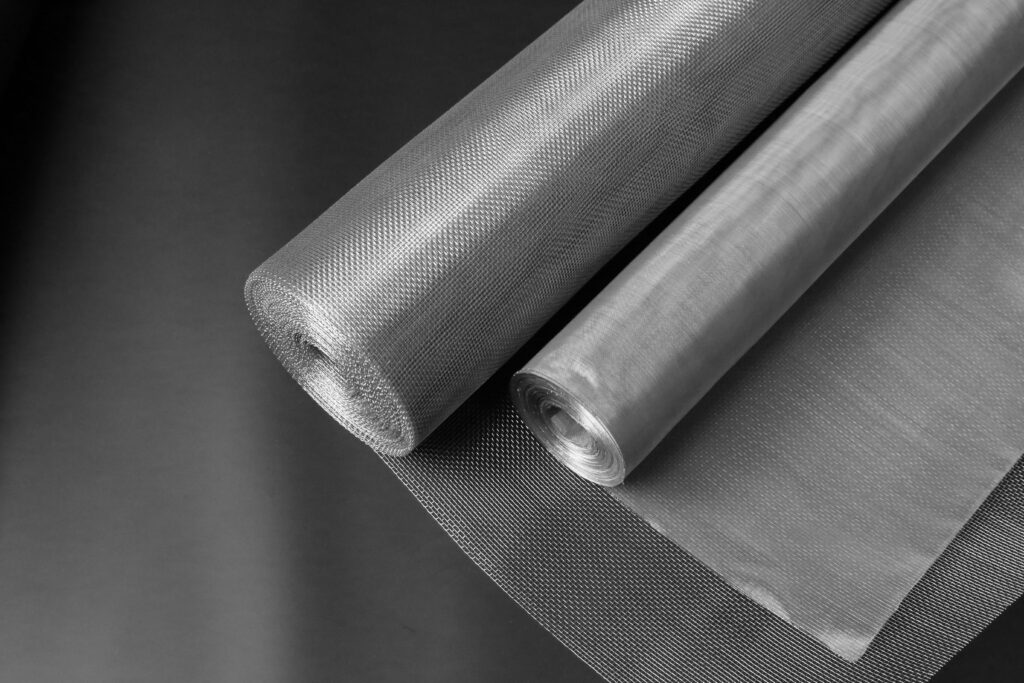

Engineered with thin, high-tensile wire for maximum open area % and superior throughput. The industry standard for flour milling, fine powder classification, and dry sieving.
Specifications: Mesh counts from 14 mesh to 200 mesh | Open area up to 65% | High tensile Grade 316 wire.

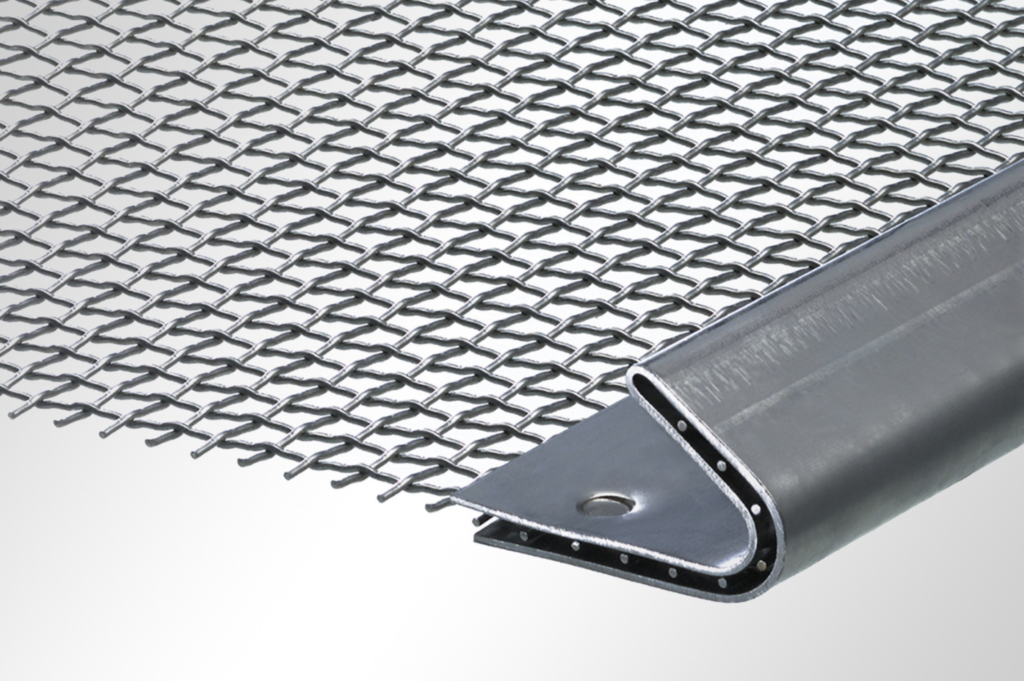

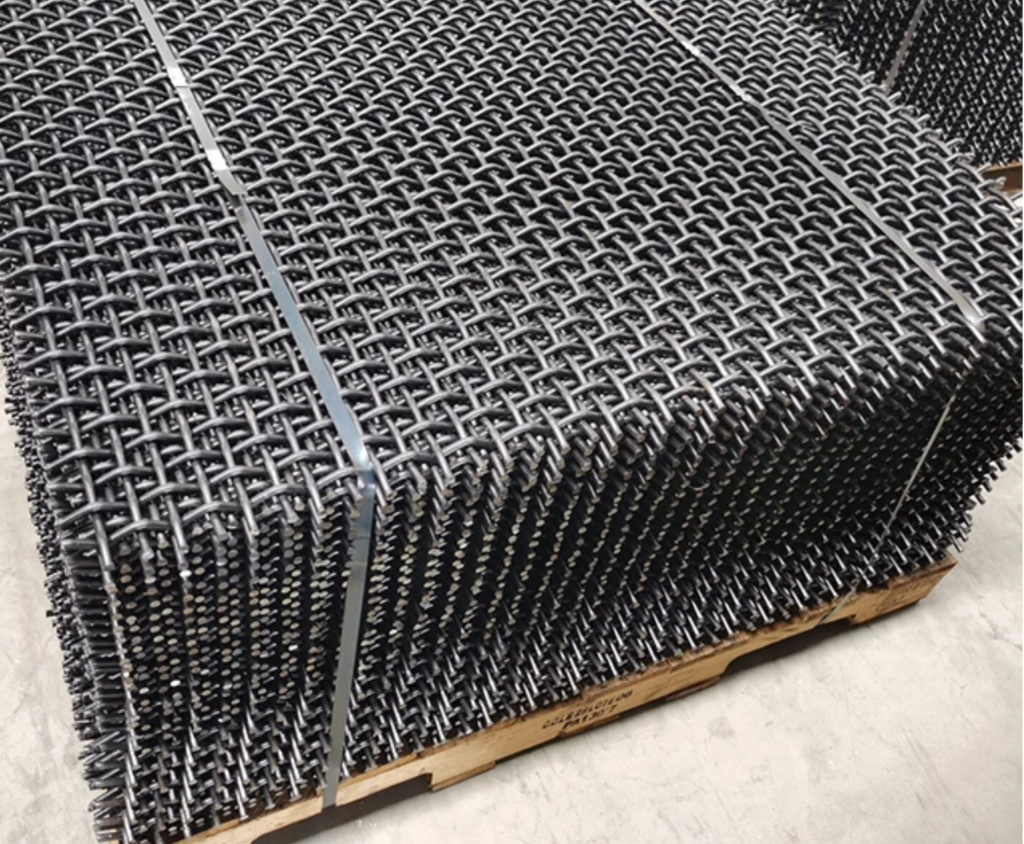

Heavy-duty woven wire screens manufactured from abrasion-resistant high-tensile spring wire. Built to endure harsh impact and high-volume aggregate grading.
Specifications: Apertures from 1.6 mm to 100 mm | Wire diameters from 1.6 mm to 12.5 mm | Custom hooked edges.

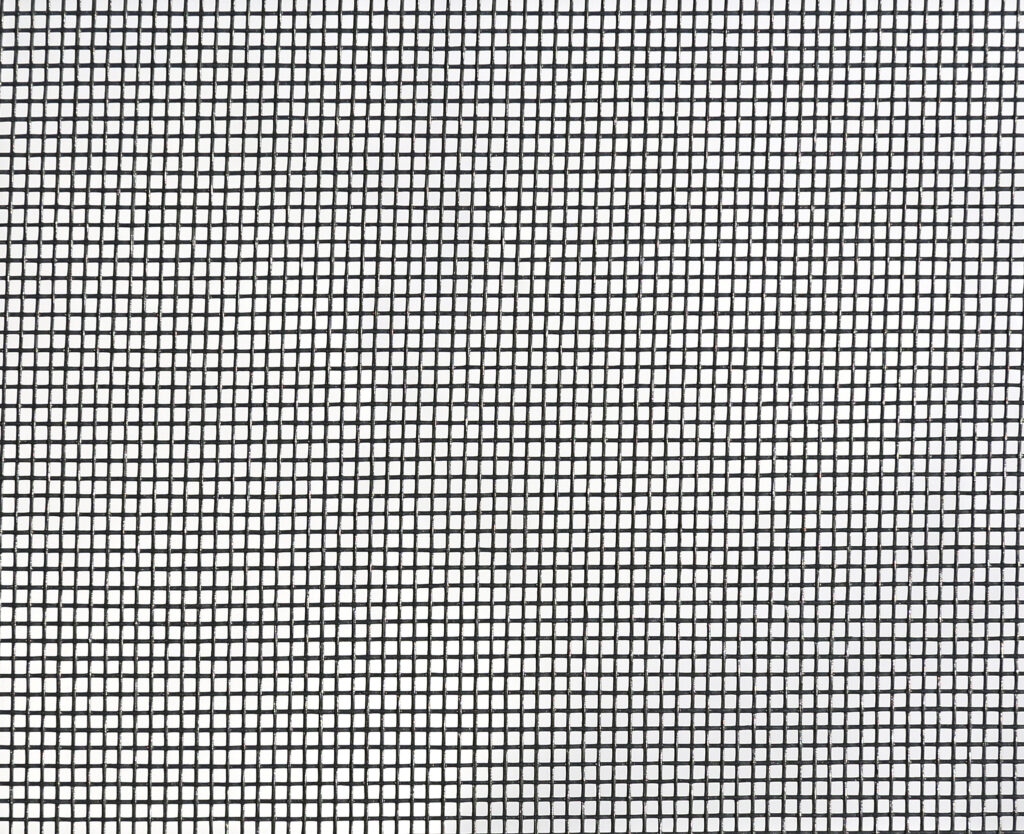

Zinc-coated woven and welded mesh providing durable corrosion resistance for industrial cages, security partitions, rodent/pest barriers, and structural reinforcement.
Specifications: Square & rectangular mesh apertures | Hot-dipped and electro-galvanised options.

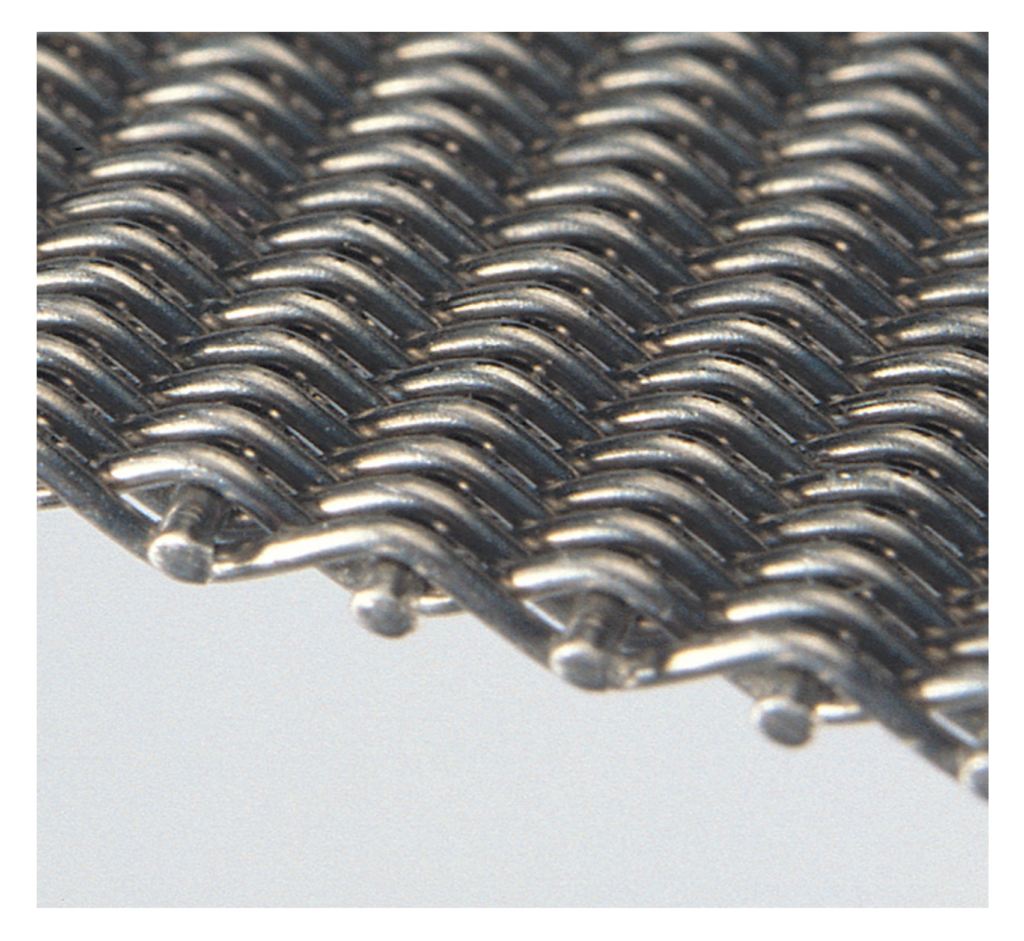

Woven with warp wires spaced apart and weft wires driven tightly together to form zero-light zero-sight apertures. Superior mechanical strength for high-pressure fluid & hydraulic filtration.
Specifications: Plain Dutch & Twilled Dutch Weaves | Filtration ratings from 1 micron to 350 microns.

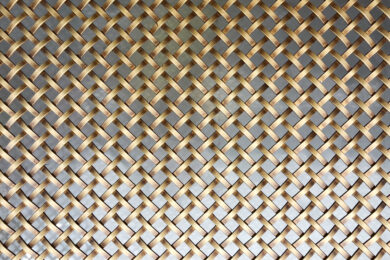

Stunning visual appeal combined with structural integrity. Specially woven for feature walls, balustrade infills, cabinetry grilles, interior fitouts, and ceiling panels.
Specifications: Available in stainless steel, bright polished brass, and aged antique bronze tones.

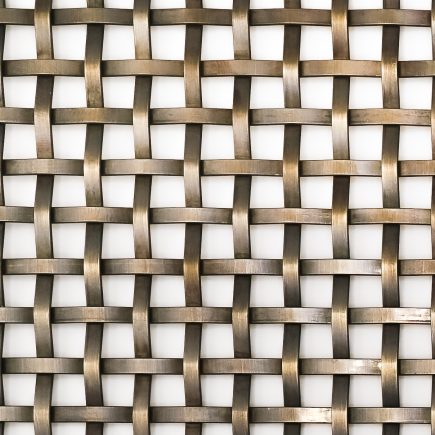

Woven brass offering both natural warmth and excellent malleability. Widely specified by architects and luxury furniture makers for joinery, ventilation, and heritage restorations.
Specifications: Apertures from 1.0 mm to 25 mm | Pre-patinated antique finishes available.

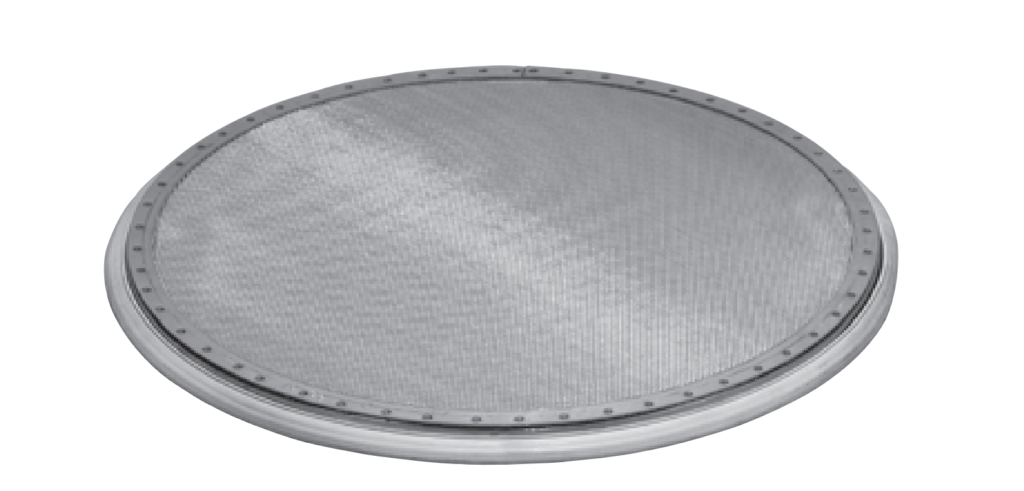

Value-add engineering from our Moorabbin workshop. We build screen decks, re-mesh worn frames, and form custom filtration components to your drawings.
Set your material, weave, aperture and wire diameter to estimate mesh count, open area and weight. Send the result straight to our team for an exact match from stock.
Estimates for square plain-weave geometry. Actual values vary with weave crimp and tolerances.
Welcome to DANCORE. Since 1999, we’ve specialised in metal mesh screening and industrial filtration. As an Australian family-run business, we take immense pride in delivering precision-grade products and practical solutions tailored to each client's specific operating requirements.
Our technical team works closely with you to determine the right weave, open area, and wire gauge for your machinery. Through strong global manufacturing partnerships and dedicated local fabrication facilities in Moorabbin, Victoria, we recommend, source, and deliver exactly what you need, when you need it.
From quarry floors to luxury fitouts, our screens and filtration media are specified by engineers, plant operators and architects nationwide.
High-tensile hooked decks, anti-blinding piano wire, aggregate sizing screens.
Food-grade SS316 bolting cloth, flour sifting screens, dairy filtration meshes.
Woven brass decorative grilles, balustrade panels, facade sunscreens, cabinetry inserts.

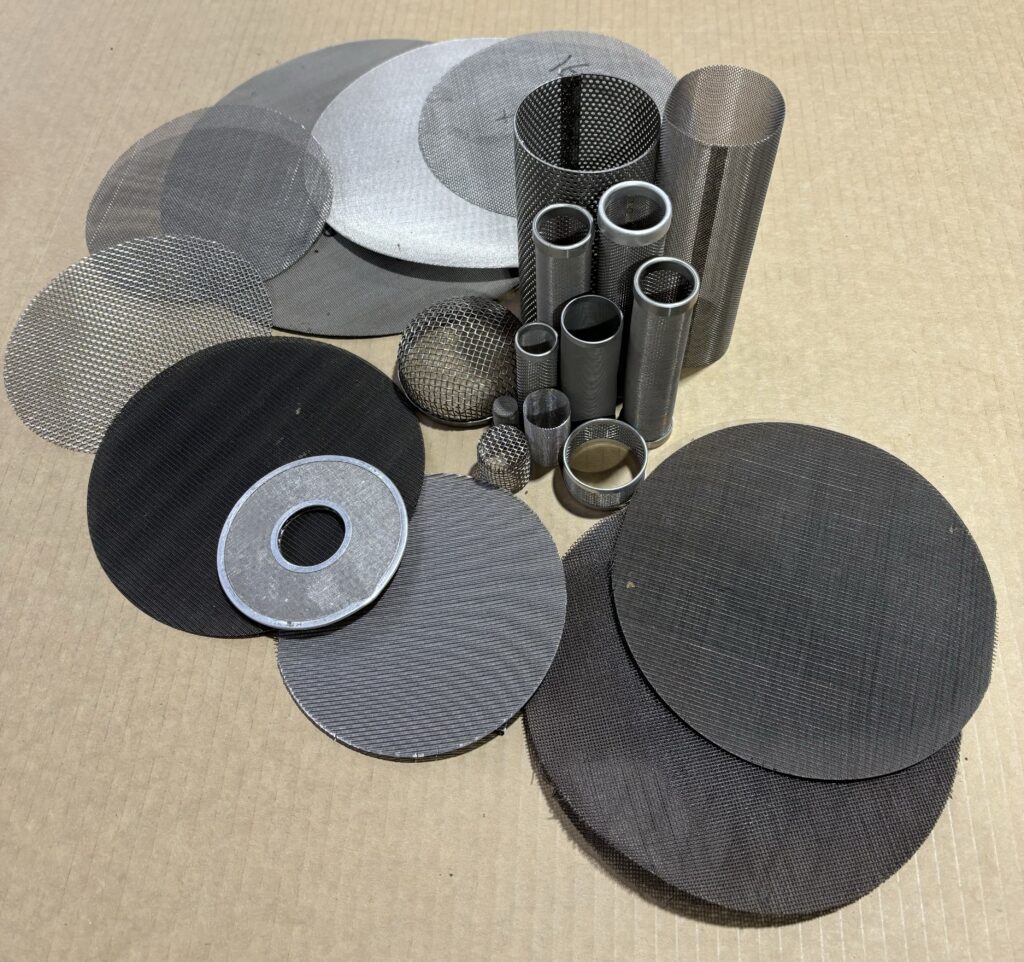

Hollander Dutch weave filter leaves, liquid strainers, pipeline basket filters.
Welded galvanised machine guards, partition cages, sorting trays.
Trommel screens, compost sifters, grain grading meshes, soil sieves.
Submit your mesh specifications, roll dimensions, or custom fabrication drawing. Our technical sales team will review and reply within 1 business day.
